Grand Machinery engineers cGMP-compliant tablet press systems for manufacturers in 50+ countries — from pilot-scale R&D to 600,000-tablets-per-hour production lines. Consistent weight. Repeatable hardness. Lifetime engineering support.
Every Grand Machinery tablet press is engineered around three non-negotiables: uniform tablet weight, repeatable hardness, and fast, validated changeover. These are the three configurations most requested by pharmaceutical, nutraceutical, and industrial buyers worldwide.
Grand’s rotary tablet press runs a precision-machined turret with 19–45 stations, producing 60,000–430,000 tablets per hour on standard B or D tooling. Hydraulic overload protection guards your punches and dies, while the forced feeder keeps low-density granulations filling evenly at high turret speeds. Independent pre- and main-compression stations let you dial in hardness without sacrificing output — keeping weight variation inside ±3% batch after batch.
Best for: Mid- to high-volume pharma, nutraceutical, herbal & chemical granulation.
High-performance ZPT420 Rotary Tablet Press, available in four versatile models (ZPT420-31D, 35D, 45D, and 55D). Engineered with a robust 100KN maximum pressure, adjustable rotating speeds up to 30 rpm, and an impressive production capacity ranging from 111,600 to up to 198,000 tablets per hour, this machine delivers exceptional precision and efficiency.

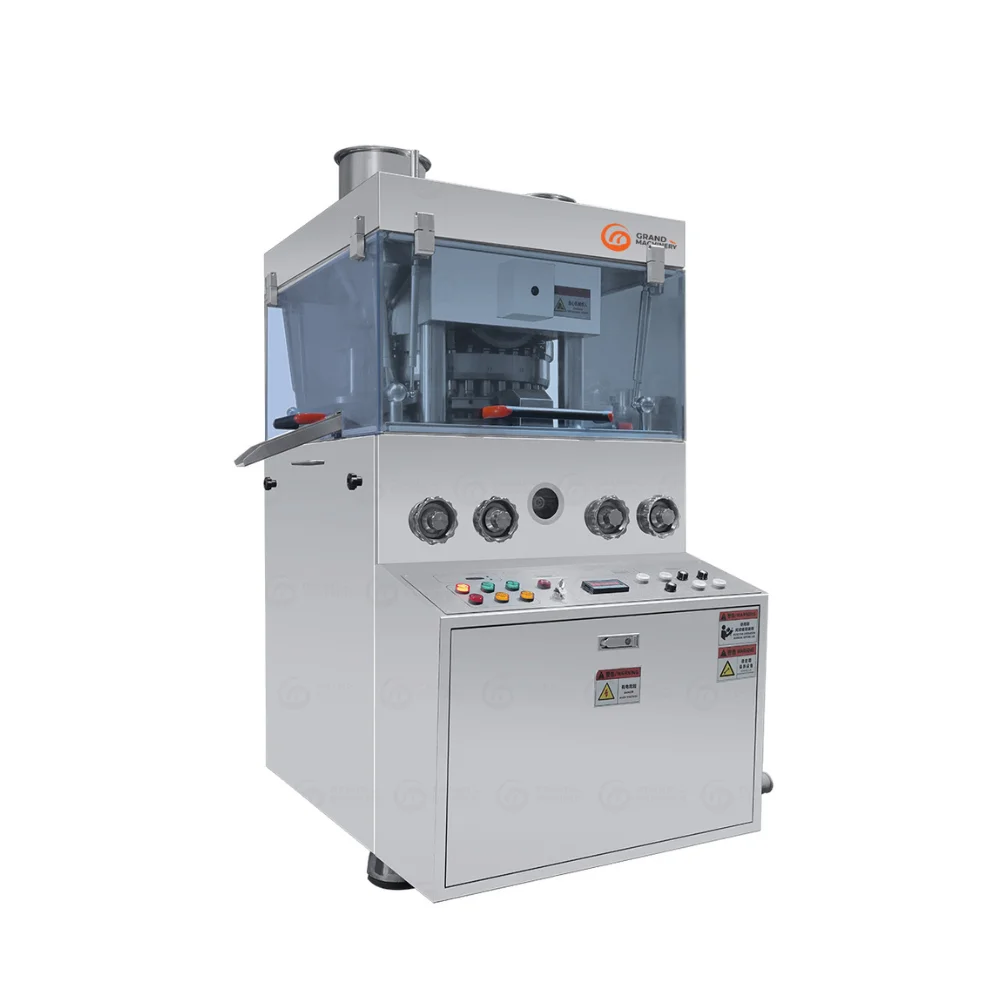

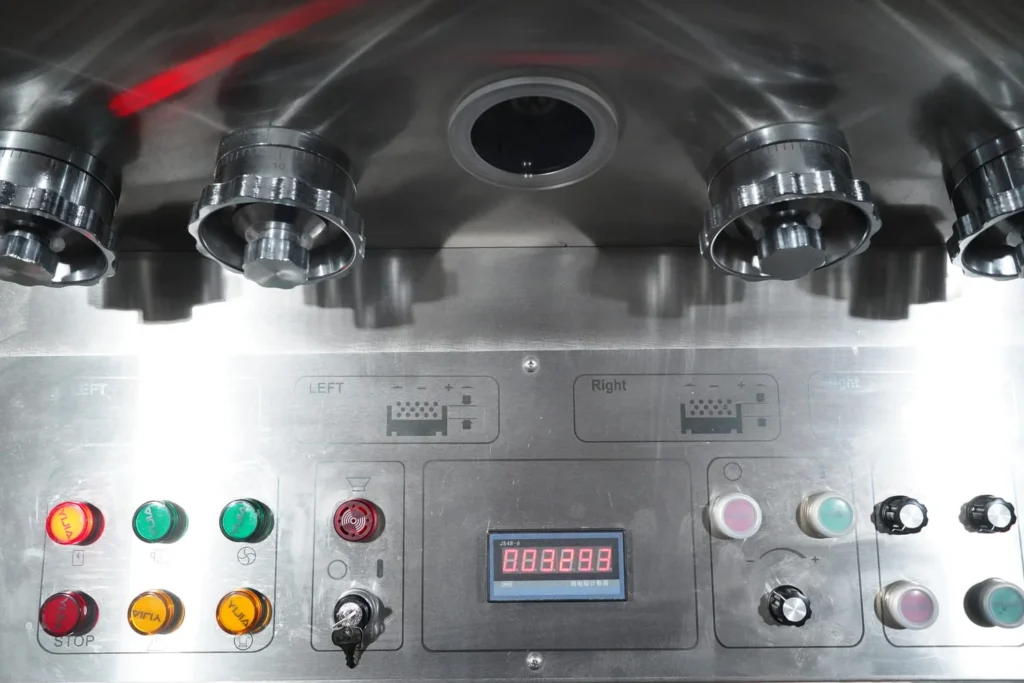

The ZP-31D Rotary Tablet Press is a double-press automatic continuous tablet compression machine designed to press granular raw materials into round, inscribed, irregular, or bi-layer tablets. Primarily used in pharmaceutical production and well-suited for chemical, food, and electronic industries.
Discover the high-performance ZPT226 Rotary Tablet Press, engineered for versatile round, ring, and shaped two-color tableting. Available in 8, 10, 12, and 16 punch configurations with outputs ranging up to 24,000 tablets/hour, featuring centralized controls and transparent observation windows for effortless operation and maintenance.

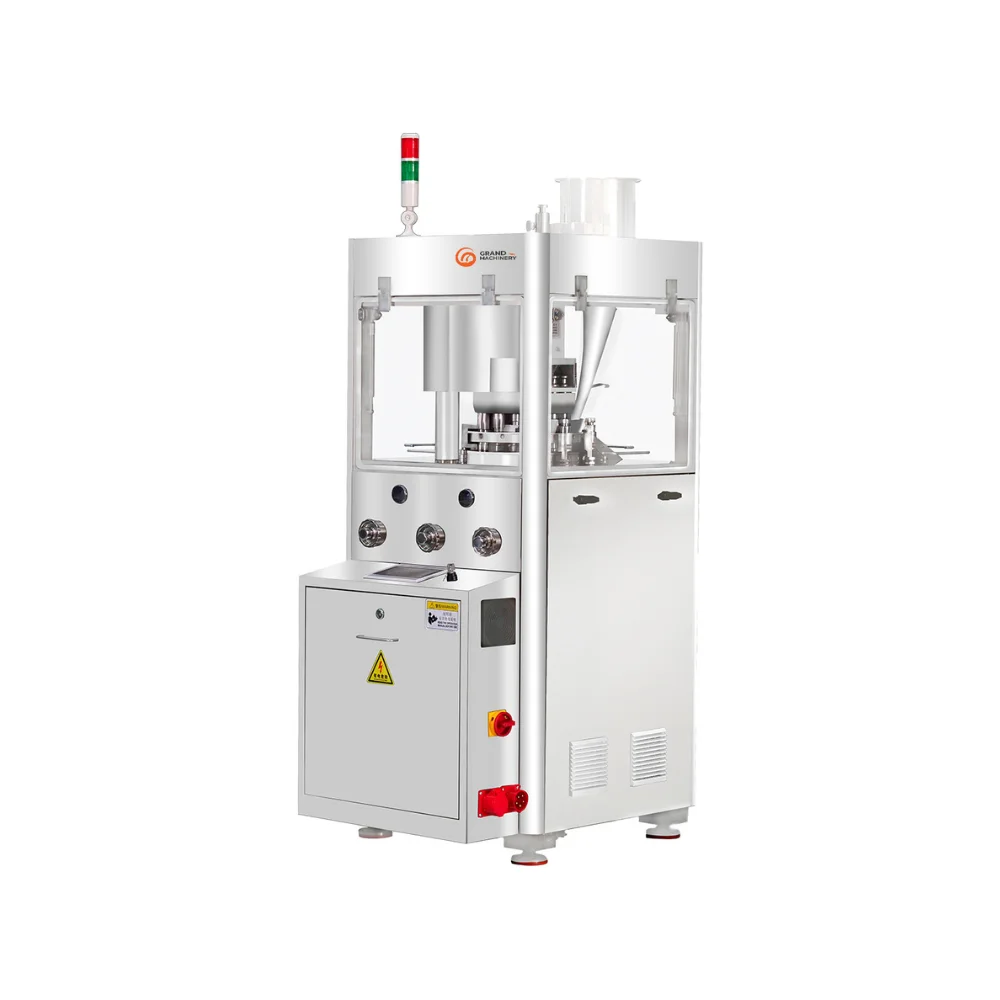

Designed to replace traditional 17-die presses, the high-performance ZP200 Rotary Tablet Press comes standard with a PLC touch screen, auto-lubrication for extended die life, and pre-compression functionality. Available in versatile models including ZP21A, ZP17B, ZP16D, and ZP14C (supporting larger sizes up to 28mm) to maximize your output efficiency.
ZP168 Rotary Tablet Press features an optimized structure, 133.6mm die length, and oil pan compatibility for superior tablet compression. Delivering around 20,000 tablets/hour (and up to 30,000–40,000/hour with the compact high-output ZP17E model), it includes popular international standard configurations like 10D and 14B.
ZP130 Rotary Tablet Press, a traditional 5, 7, and 9-die machine available in Type A (max tablet diameter 13mm) and Type B (max tablet diameter up to 18–20mm) configurations. Engineered for an optimal output of around 10,000 tablets per hour, it is a reliable and efficient choice for entry-level production.
Grand’s high-speed tablet press machine pairs a vibration-damped frame with closed-loop weight control, so tablet quality holds steady above 100 rpm turret speed — up to 600,000 tablets per hour. Recipe-driven parameter storage validates changeovers in minutes instead of hours, and modular turret options scale capacity as your order book grows. One machine, one validation, room to double.
Best for:High-volume OTC, supplements & CMO production lines.

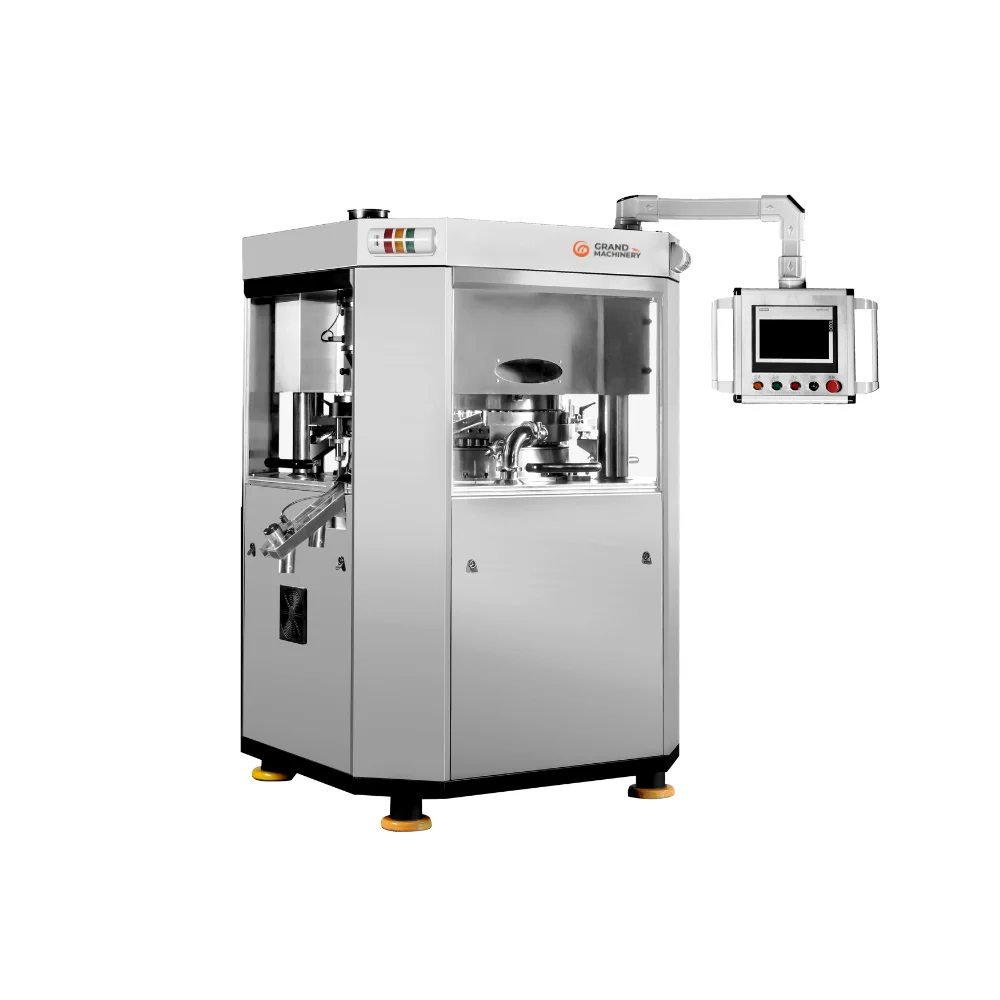

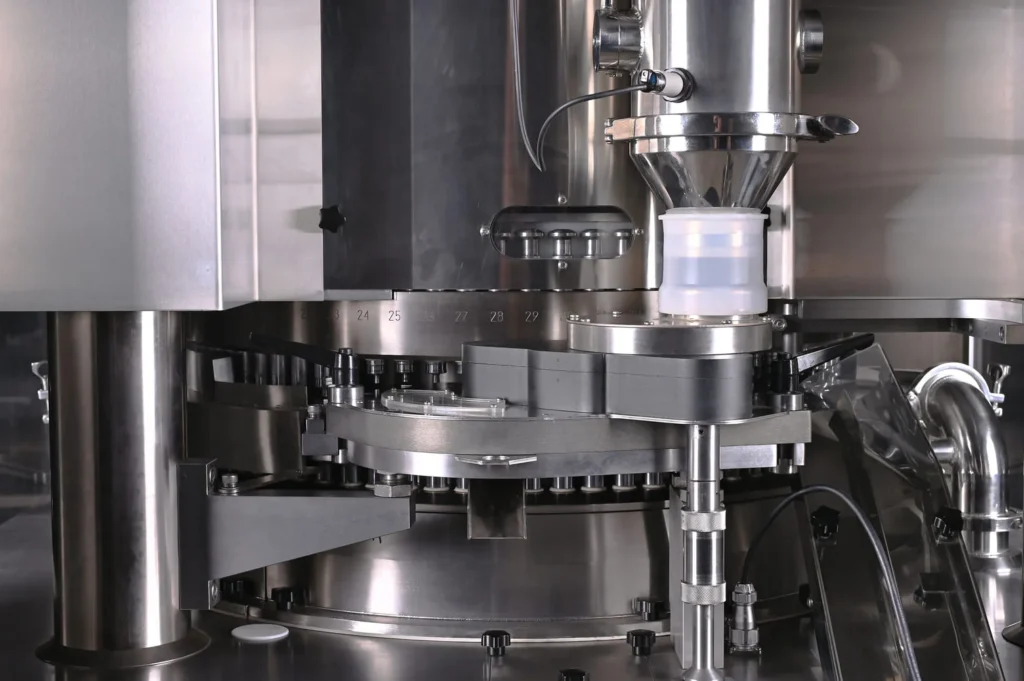

GZPK660 High Speed Tablet Press features a high level of automation, excellent operational performance, superior stability, and low noise levels, representing leading-edge technology in the domestic market. Based on advanced tablet press technology, this series utilizes an AC variable-frequency motor with stepless speed regulation to drive the turret via a worm gear mechanism, enabling the efficient compression of granules or powders.
GZPK720 High Speed Tablet Press is a high-speed, double-sided discharge tablet press designed specifically for the efficient, high-volume production of salt and industrial tablets. Equipped with 51 punch stations, the machine features main and pre-compression forces of up to 150 kN and a maximum production capacity of 153,000 tablets per hour.
The GZP500 High Speed Tablet Press is a high-performance, double-press rotary machine engineered for large-batch production in the pharmaceutical, food, chemical, and electronic industries. Featuring a fully enclosed stainless steel body, advanced PLC human-machine interface control, and robust pressure protection, it efficiently compresses granular raw materials—including difficult-to-form items—into reliable round or irregular tablets while ensuring high safety, precision, and compliance with GMP standards.
Best for: Large-batch production where floor space & validation time are the bottleneck.
GZPK660 High Speed Tablet Press features a high level of automation, excellent operational performance, superior stability, and low noise levels, representing leading-edge technology in the domestic market. Based on advanced tablet press technology, this series utilizes an AC variable-frequency motor with stepless speed regulation to drive the turret via a worm gear mechanism, enabling the efficient compression of granules or powders.
High-performance ZPT420 Rotary Tablet Press, available in four versatile models (ZPT420-31D, 35D, 45D, and 55D). Engineered with a robust 100KN maximum pressure, adjustable rotating speeds up to 30 rpm, and an impressive production capacity ranging from 111,600 to up to 198,000 tablets per hour, this machine delivers exceptional precision and efficiency.
The GZP500 High Speed Tablet Press is a high-performance, double-press rotary machine engineered for large-batch production in the pharmaceutical, food, chemical, and electronic industries. Featuring a fully enclosed stainless steel body, advanced PLC human-machine interface control, and robust pressure protection, it efficiently compresses granular raw materials—including difficult-to-form items—into reliable round or irregular tablets while ensuring high safety, precision, and compliance with GMP standards.
Discover the high-performance ZPT226 Rotary Tablet Press, engineered for versatile round, ring, and shaped two-color tableting. Available in 8, 10, 12, and 16 punch configurations with outputs ranging up to 24,000 tablets/hour, featuring centralized controls and transparent observation windows for effortless operation and maintenance.
Every Grand Machinery tablet press machine is assembled, wired, and FAT-tested inside our own facility — no outsourced frames, no third-party control cabinets. Vertical integration means tighter tolerances, faster spare-parts dispatch, and engineers who know your machine by serial number, not just model number. Two decades in, that's an installed base still running three-shift production after 15 years.
A tablet press machine is a 15-year investment — support matters more after delivery than before it. You get 24/7 remote diagnostics, commissioning engineers on-site worldwide, and fast-moving spares stocked for 72-hour dispatch. One dedicated engineer follows your project from spec review through your first validated batch, and answers on the first call — not the third email.
Your auditors will ask. We answer in advance. Each tablet press machine ships with documented IQ/OQ protocols, 3.1 material certificates for every product-contact surface, and a complete cGMP documentation package. Our factory is ISO 9001 certified, and machines carry CE conformity for the European market. Audit-ready traceability is standard — not an option negotiated after the PO.
A tablet press machine forms tablets by compressing a measured volume of granulated powder between an upper punch and a lower punch inside a die. On a rotary machine, this cycle repeats at every turret station, dozens of times per rotation. Master the six steps below and you’ll specify the right machine — and troubleshoot formulation changes faster.

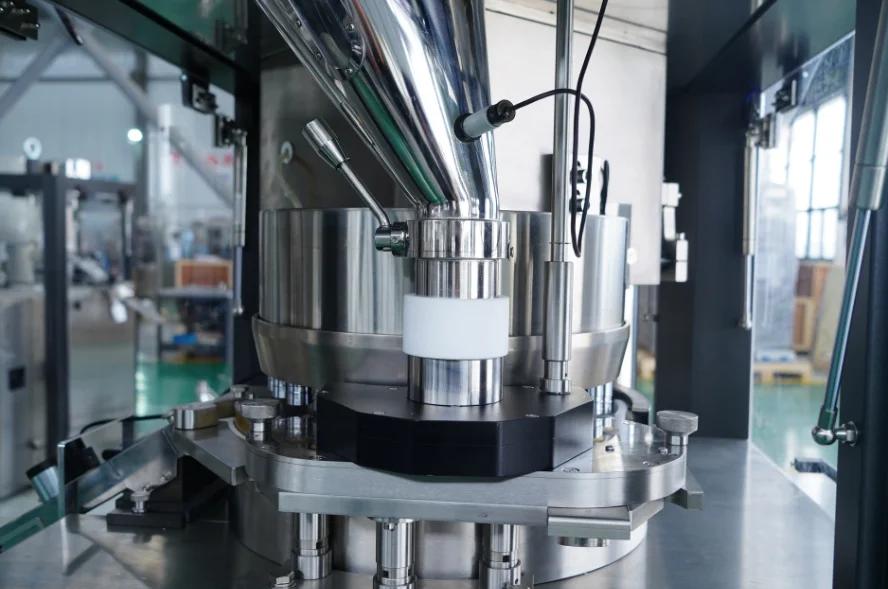

Granulated material flows from the hopper into the forced feed frame, which meters powder into each die cavity as the turret rotates continuously.
The lower punch glides over the weight-adjustment cam to a precise depth, defining fill volume. Servo-driven dosing corrects automatically to hold tablet weight inside tolerance.

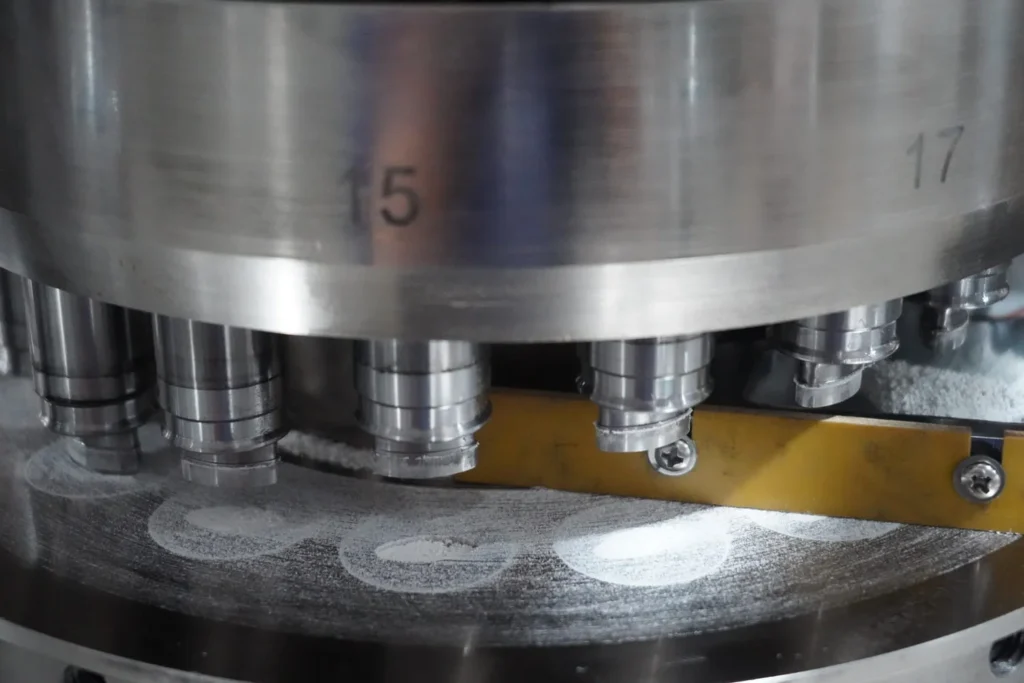

A light pre-compression strike expels entrapped air and pre-densifies the powder. This is followed by a main compression stage that locks in target hardness, thickness, and performance.

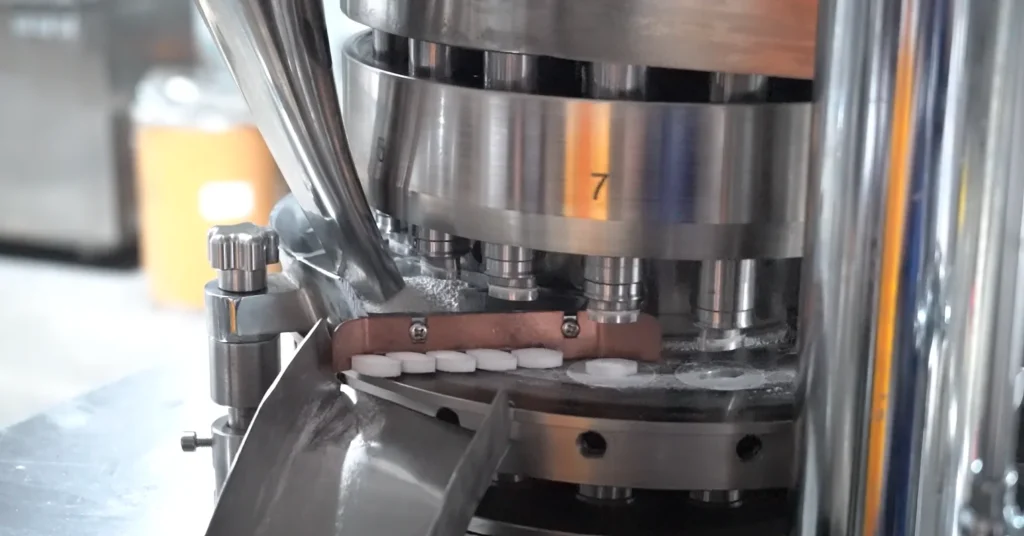

The lower punch rides up the ejection cam, lifting the finished tablet flush with the die table, clear of the die bore.
A scraper guides tablets into the discharge chute while in-line weight checking and optional metal detection reject out-of-spec product automatically — before it reaches packaging.
Send us your formulation, target output, and tablet dimensions. Within 24 hours you’ll receive a machine recommendation, budget quotation, and tooling options — from an engineering team that builds complete production lines, from granulation to tablet press machine to packaging.
Straight answers to the questions our engineering team hears most from procurement and production managers.
A tablet press machine — also called a tablet compression machine or pill press — converts powder or granules into tablets of uniform weight, hardness, and dimensions. Material is dosed into a die and compacted between two punches. Modern rotary machines repeat this cycle at every turret station under full process control, producing hundreds of thousands of tablets per hour.
Single-punch (eccentric) presses use one die and suit R&D, clinical batches, and small-scale output — typically under 15,000 tablets per hour. Rotary machines carry multiple stations on a rotating turret and start where single-punch capacity ends. If your target exceeds roughly 50,000 tablets per hour, a rotary tablet press machine is the economical choice.

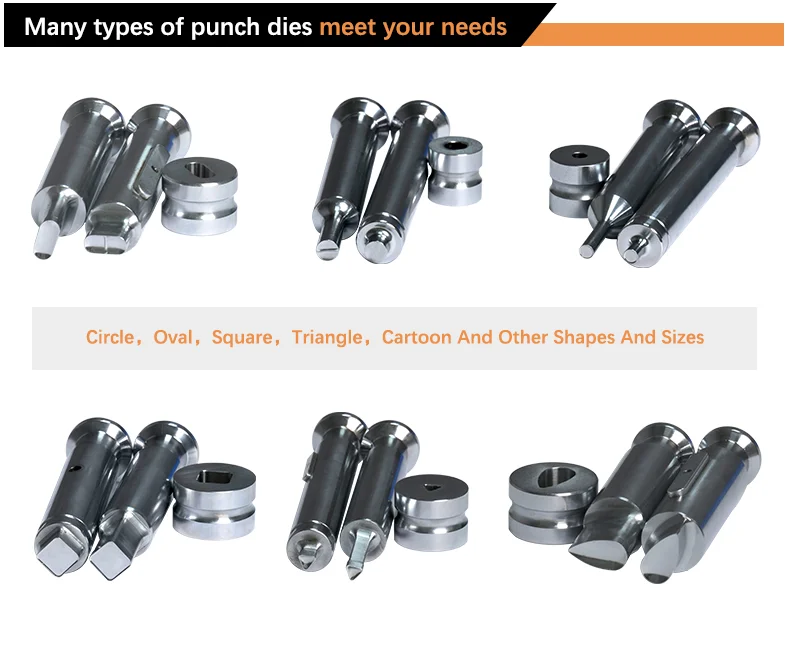

Tooling sets your tablet size and maximum compression force. B tooling runs standard round and small shaped tablets at high speed; D tooling handles larger tablets and forces up to ~100 kN; BB covers extra-large formats. All Grand Machinery machines accept TSM and EU-standard tooling, so punches and dies can be sourced globally without re-machining.
Pharmaceutical granulations, vitamin and nutraceutical blends, herbal extracts, chemicals and catalysts, detergents, fertilizer, and confectionery such as milk tablets and candy. For poorly flowing or low-density formulations, we configure a forced feeder and pre-compression setup matched to your material’s bulk density and compressibility.
Three controls work together: dosing depth sets fill weight, compression force sets hardness, and the closed-loop weight-control system samples output continuously and corrects dosing in real time. Pre-compression removes the trapped air that causes weight drift and splitting. On a well-maintained machine, weight variation holds within ±3% — comfortably inside pharmacopoeial limits.
Every machine ships with IQ/OQ protocol templates, a factory acceptance test (FAT) report, 3.1 material certificates for contact parts, electrical and pneumatic schematics, CE conformity documentation, and an English operation & maintenance manual. On-site SAT and validation support can be arranged.
Standard models ship in 30–45 days ex-works. Every machine carries a 12-month warranty against manufacturing defects, plus lifetime technical support, 72-hour spare-parts dispatch, and 24/7 remote diagnostics. Custom configurations — special materials, local voltage standards, ATEX environments — typically add two to three weeks.
