Grand Machinery designs and manufactures high-performance coating machines for the pharmaceutical, food and chemical industries. Every coating machine we build combines precision spray technology, intelligent PLC control and GMP-compliant construction to deliver uniform coating results, higher yields and lower operating costs — batch after batch, year after year.
Grand Machinery offers a full range of coating machines — from high-efficiency intelligent models to integral and poreless designs — covering batch sizes from laboratory scale to full industrial production. Each coating machine is precision-engineered for uniform film application, stable operation and simple maintenance, giving you the flexibility to scale production with confidence.
A flagship model that pairs a PLC touch-screen control system with automated spray, precise temperature and humidity regulation, and real-time process monitoring. Built for tablet and capsule film coating, this coating machine delivers uniform coating thickness, consistent appearance and a high solution recovery rate that minimizes waste. Its GMP-compliant stainless steel construction and CIP-friendly cleaning design allow fast changeovers between batches.

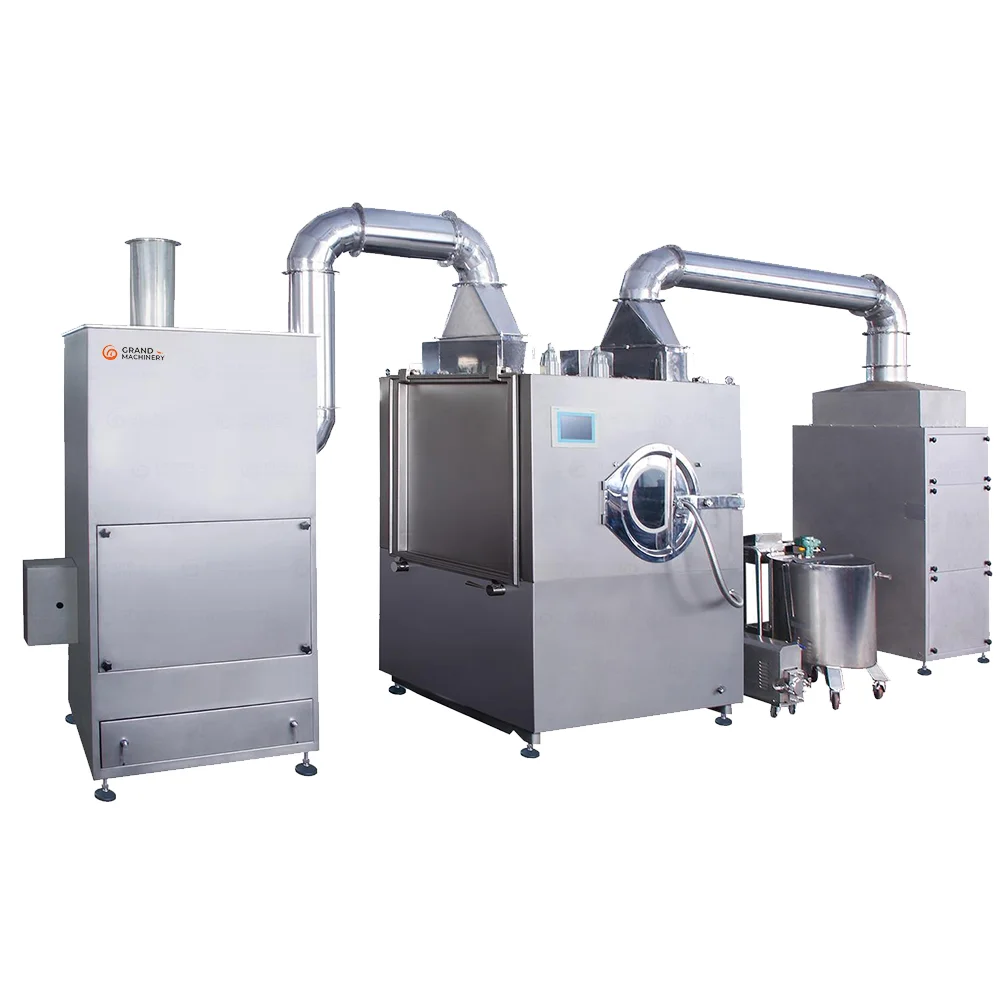

The BG400 High Efficiency Intelligent Coating Machine is a robust, ultra-large capacity solution designed for massive industrial pharmaceutical and food coating operations. Featuring an impressive 400L load capacity per batch, advanced air purification, precise temperature control, and automated systems, it guarantees exceptional coating uniformity, optimal drying efficiency, and maximum throughput for large-scale production.

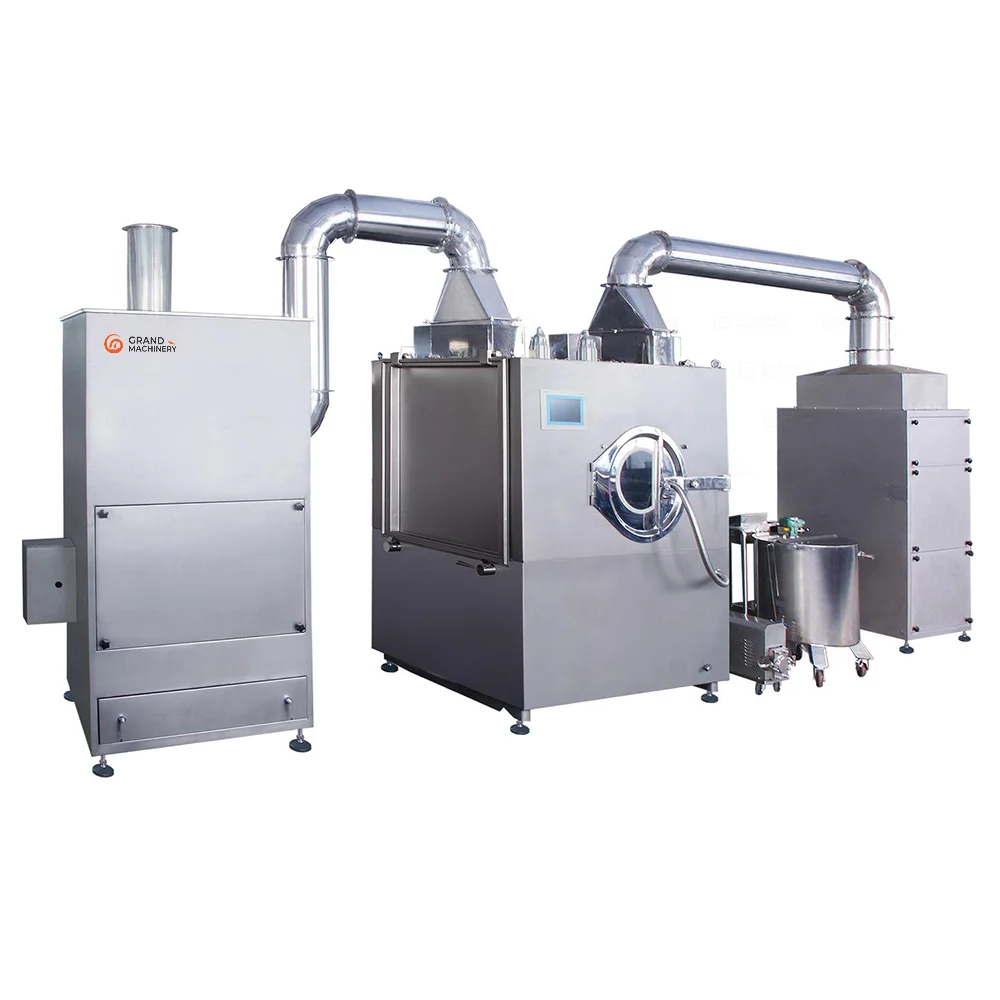

The BG80 High Efficiency Intelligent Coating Machine is a proven, PLC-controlled film coating system engineered for coating tablets, pills, and sweets with organic film, water-soluble film, and sugar film across pharmaceutical, food, and biological product industries. Powered by a Siemens touch-screen controller with 14+ programmable coating recipes, it delivers reliable, batch-to-batch consistency — every run identical, zero parameter drift.
Designed for remarkable efficiency and a compact footprint, the BG80 pairs a 100,000-level clean hot-air cabinet with a negative-pressure exhaust system to guarantee a dust-free, low-cross-contamination process. The streamlined guiding-type mixer drives smooth tablet rotation without chipped edges, while the professional customized spray gun provides uniform atomization with zero leakage or blockage. With low energy consumption, automatic feeding, and a 360° self-cleaning sprayer (optional), it’s the superior, cost-effective choice for modern high-volume production lines.

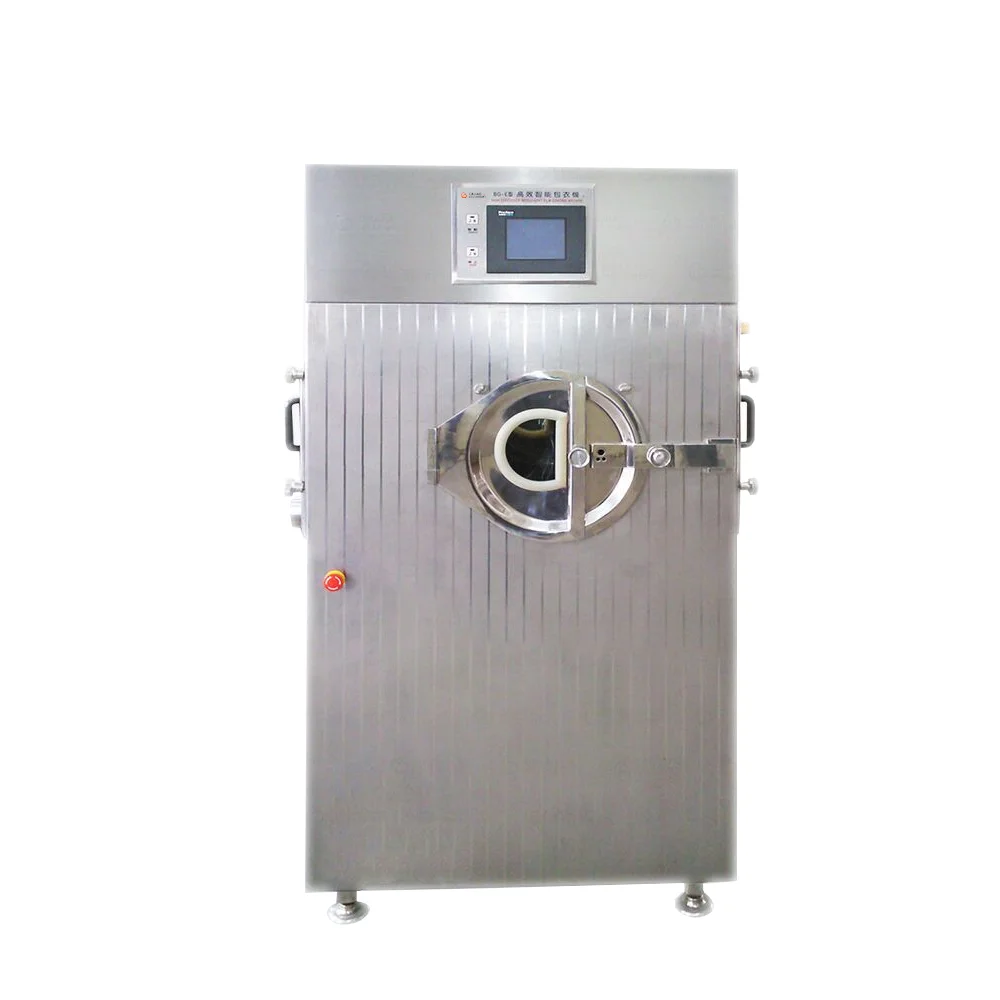

The BG-10E high-efficiency film coating machine is a compact, lab-scale and small-batch production system designed for pharmaceutical, health product, and food industries. Integrating machinery, electronics, and pneumatics, it delivers precise control over coating parameters such as pan revolution, air volume, and temperature to ensure uniform, high-quality finishes for tablets, pills, and granules. Featuring an integrated air handling cabinet, a reliable Longer peristaltic pump system, and corrosion-resistant components, the BG-10E optimizes space while providing exceptional performance, safety, and process repeatability for research and development.

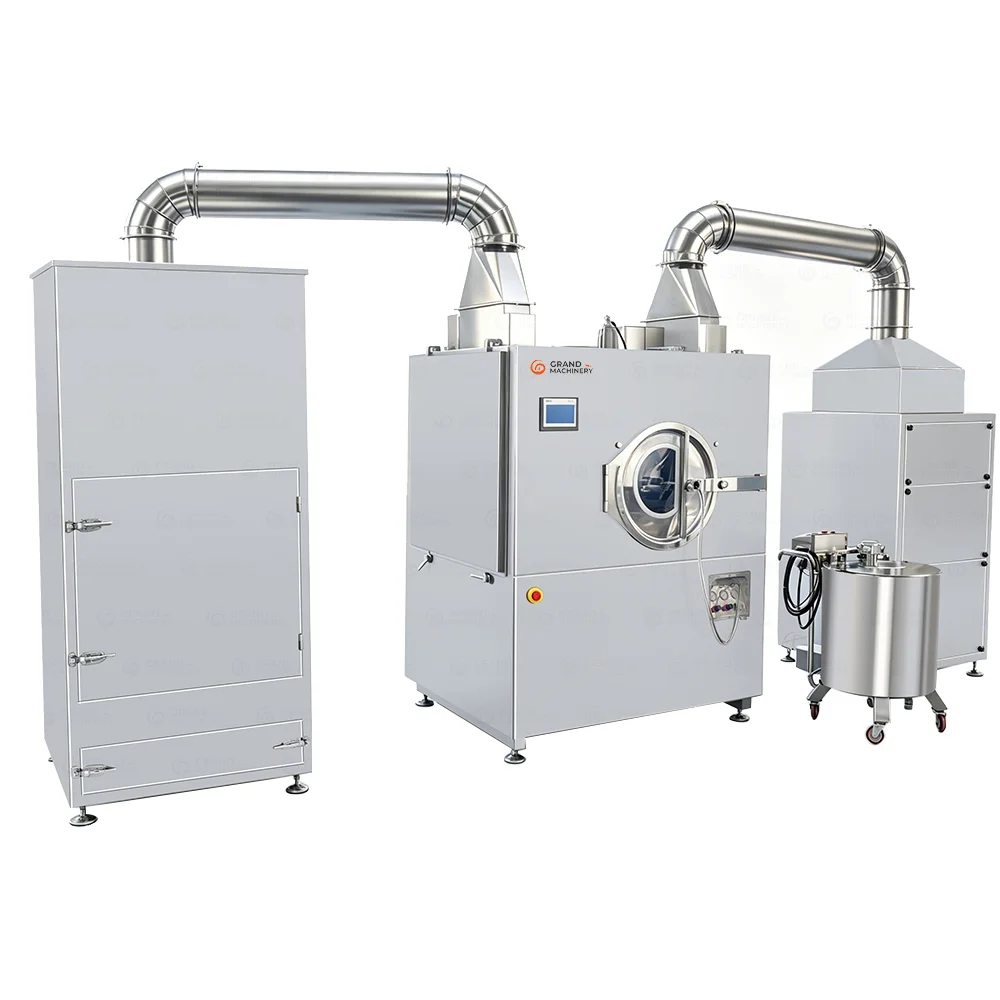

BG150 High Efficiency Intelligent Coating Machine is a state-of-the-art solution designed for precise and uniform film and sugar coating in pharmaceutical and food production. Engineered with an intelligent control system, optimized airflow, and robust construction, this machine delivers exceptional batch consistency, high capacity (150L/time), and reliable performance for industrial-scale manufacturing.
An integrated coating machine solution that merges the coating pan, spray system, air handling unit and control cabinet into one compact unit. The all-in-one structure simplifies installation and reduces factory footprint while maintaining high drying efficiency and stable coating performance — an ideal choice for medium and large batch production in pharmaceutical and food plants.

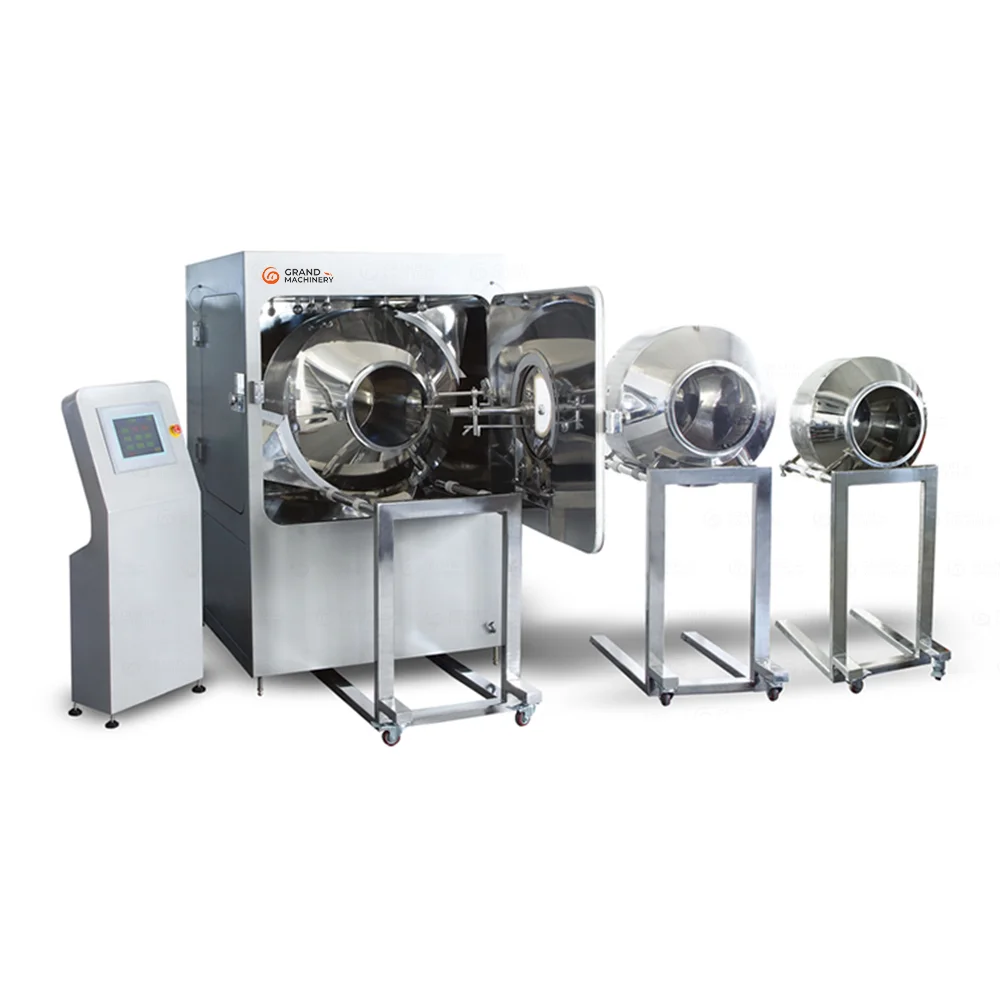

The BG80H Integral High Efficiency Coating Machine is a professional industrial-grade coating solution designed for precise tablet and pill processing. Featuring flexible multi-capacity coating drums (10L, 40L, and 80L options), high-performance airflow control, and robust heating systems, it delivers exceptional coating uniformity, optimal drying efficiency, and reliable performance for pharmaceutical and food production lines.

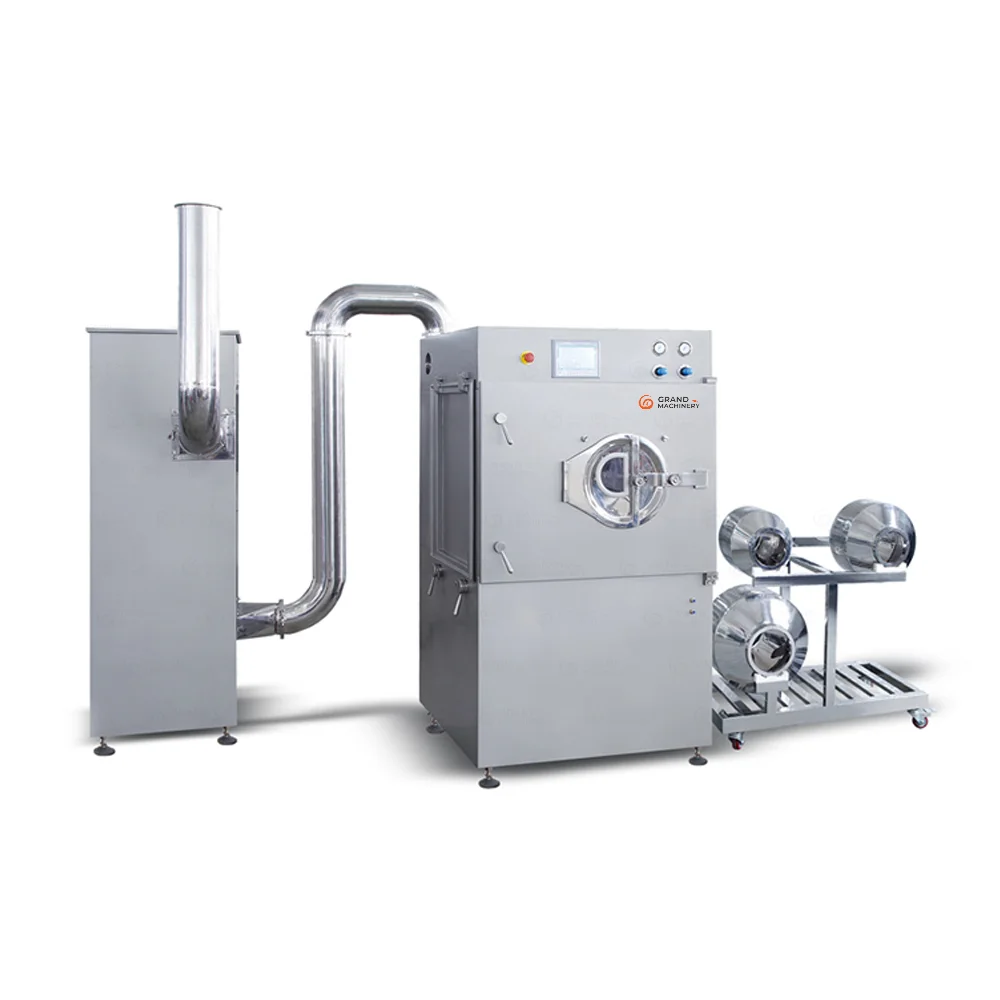

The BG20H Integral High Efficiency Coating Machine is an advanced laboratory and small-batch production system designed for precise tablet film coating. Featuring interchangeable coating pans (5L, 10L, and 20L capacities), a high-efficiency airflow system, and automated process controls, it ensures superior coating uniformity, minimal cross-contamination, and exceptional batch consistency.

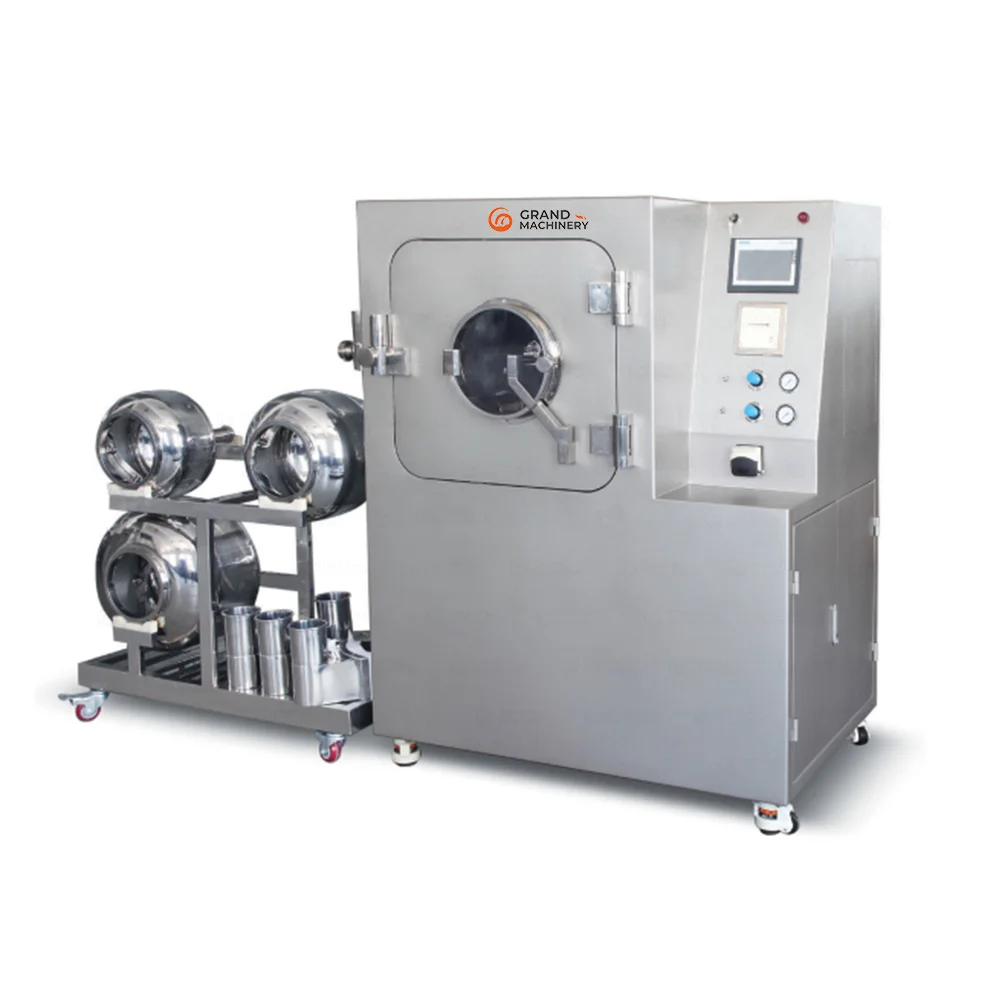

The BG5H Integral High Efficiency Coating Machine ensures dust-free and clean operations during film coating while minimizing syrup splash and cross-contamination. Equipped with a new-type micro-computer PLC and touch-screen interface, it offers automated process parameters, programmable temperature and negative pressure control, and advanced data storage and printing capabilities for precise batch reproducibility.

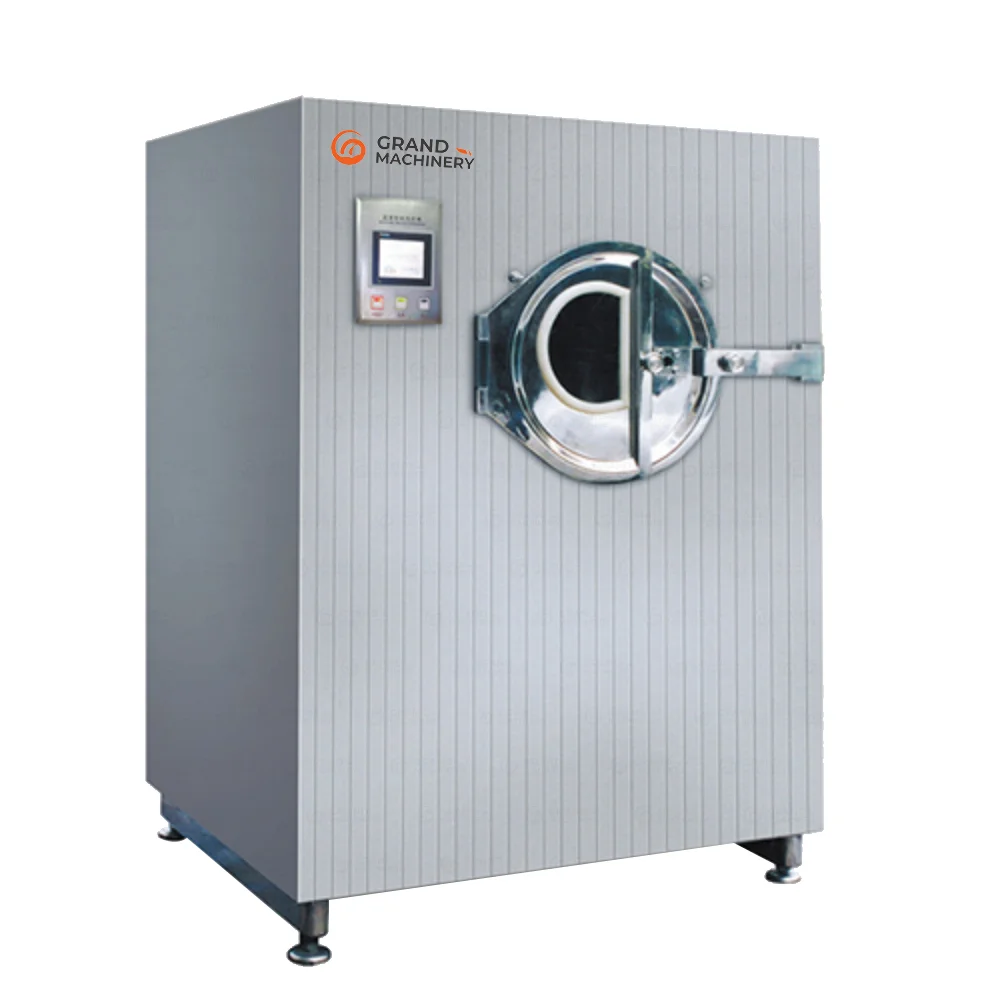

A poreless coating machine featuring a sealed, hole-free drum that keeps the coating solution fully inside the pan, producing a smoother finish and higher solution utilization. The airtight structure is especially suited to sugar coating, candy coating and moisture-sensitive products, offering superior hygiene, easy cleaning and a cleaner working environment.
Complete supporting systems to maximize the performance of your coating machine: high-precision spray guns, peristaltic dosing pumps, solution tanks, air compressors and process control software. Every piece of auxiliary equipment is matched to Grand Machinery coating machines for seamless integration, consistent spray patterns and reliable long-term operation.

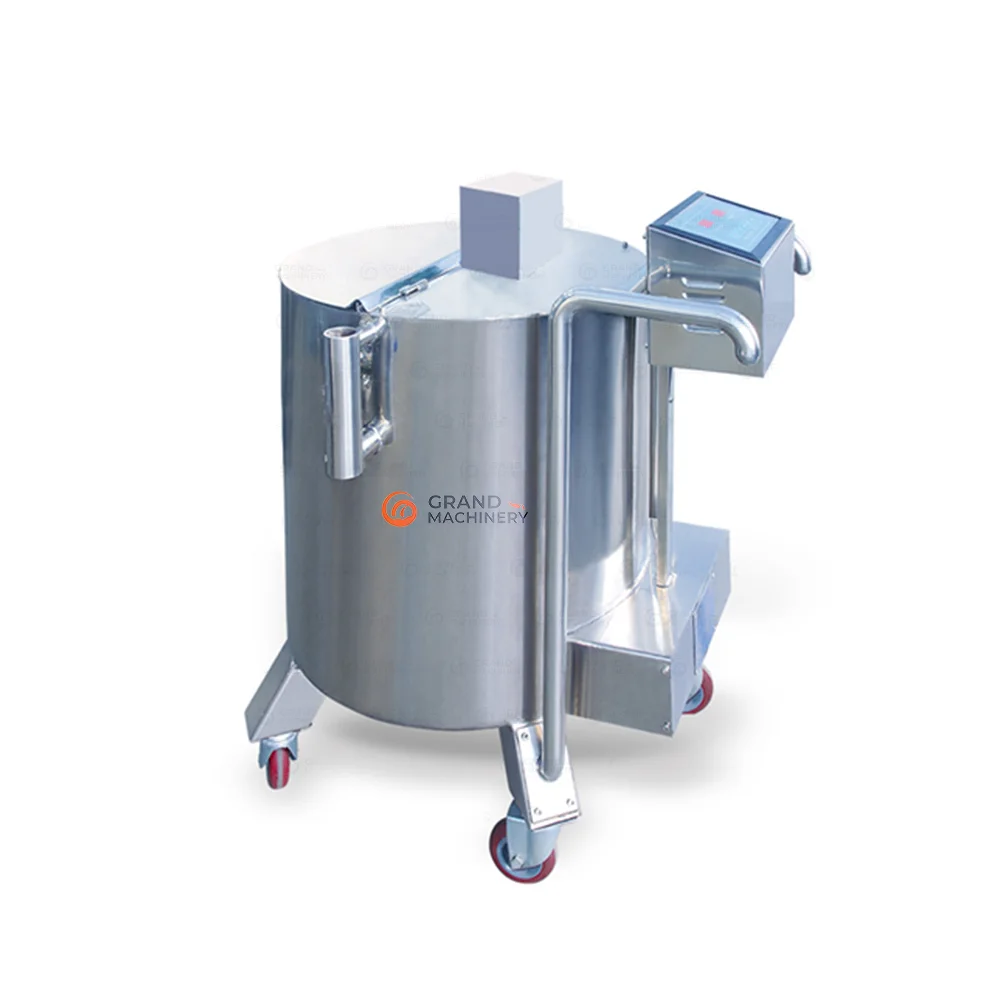

The Agitating and Holding Tank adopts an electric heating method and is equipped with a pneumatic agitator powered by compressed air. It features stable rotation speed, stepless speed regulation, and uniform mixing of media. Offering automatic temperature control from room temperature to 80°C, it is easy to operate and safe to use. The entire unit is constructed from stainless steel with mirror-polished inner and outer surfaces.

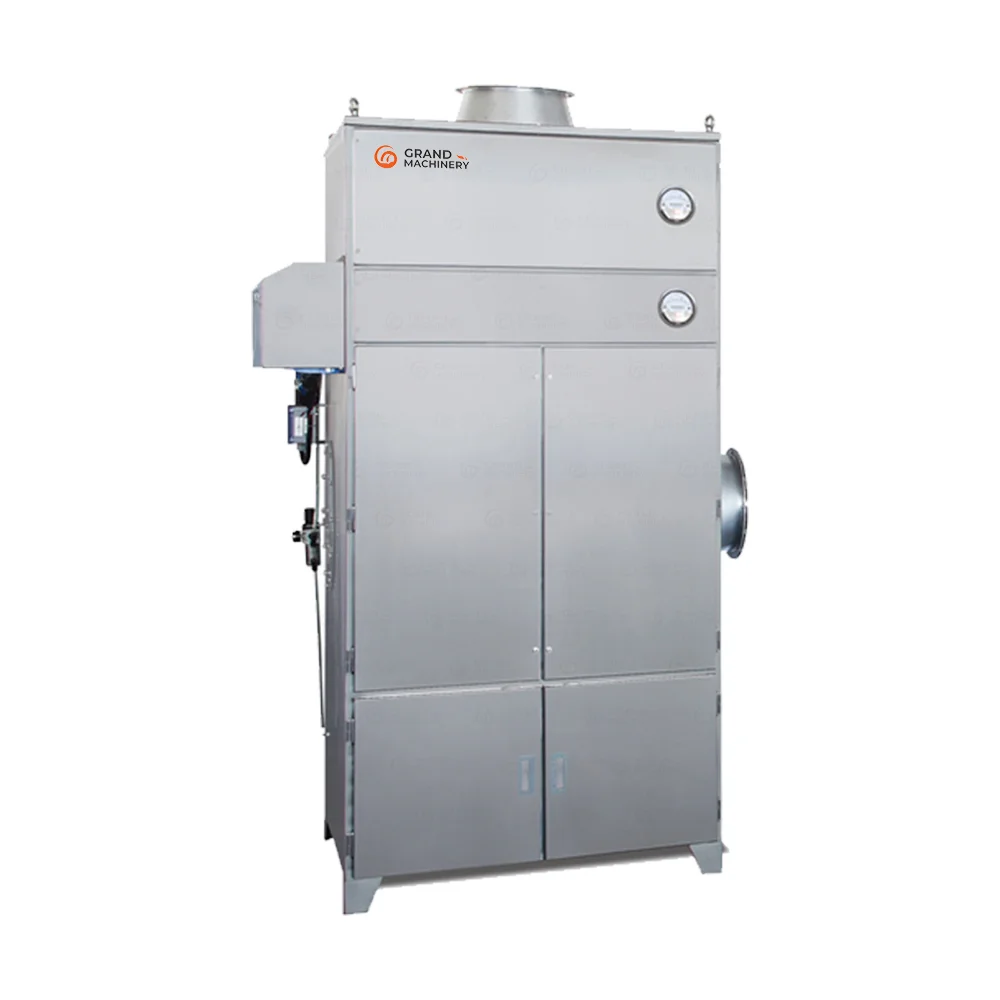

The Filter Cartridge Type Exhaust Cabinet is designed for efficient dust extraction and ventilation of the main coating drum while maintaining negative pressure in the working area. Featuring a filter cartridge structure with compressed air pulse cleaning, it achieves a filtration grade up to F9 (with options for H13 upon request) and includes a damping device. The exhaust outlet is equipped with an anti-backflow device to prevent exhaust gas from flowing back into the pipeline when shut down.

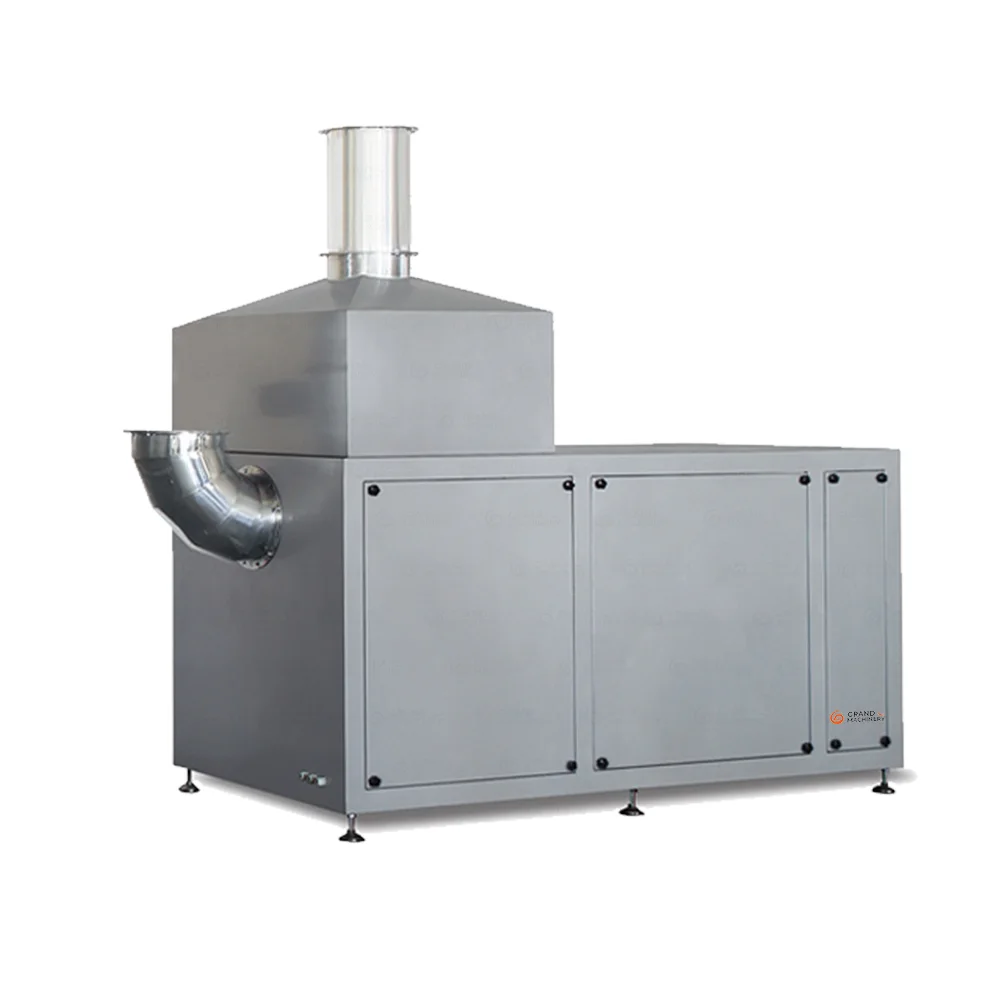

The Surface Cooling Type Hot Air Cabinet is an advanced air treatment and supply unit designed specifically for high-efficiency pharmaceutical coating systems. Operating via a centrifugal blower, air passes through primary, medium, and surface-cooling dehumidification stages, followed by a high-efficiency filter to achieve Class 100,000 clean air standards while effectively removing moisture. The dried, purified air is then heated via a heat exchanger (steam or electric) and delivered into the main coating drum, equipped with built-in damping devices for stable, low-noise operation.

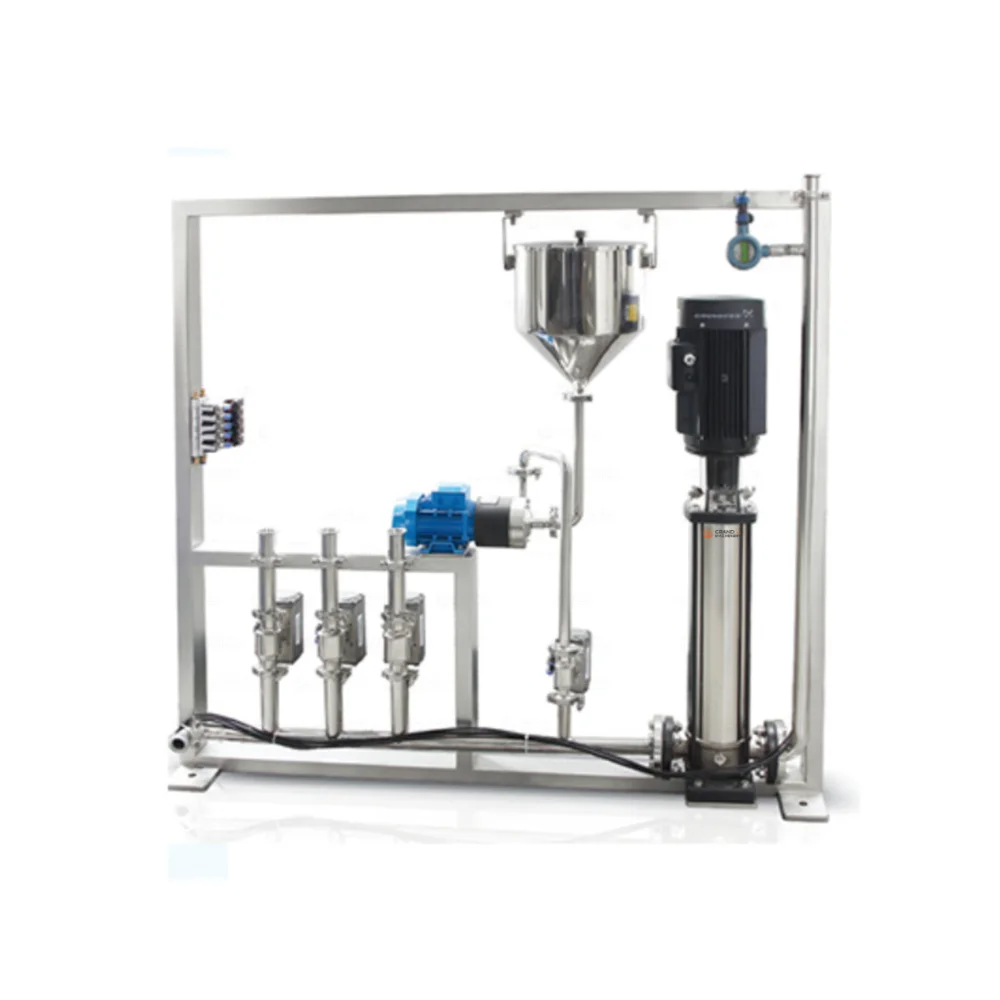

CIP Cleaning System Working Principle: Tablet cores move continuously along complex trajectories within the clean, sealed, rotating drum of the coating machine, ensuring smooth tumbling and frequent turnover. Coating medium—agitated in a constant-temperature mixing tank—is pumped to spray guns and applied onto the tablet cores. Simultaneously, under the influence of hot air and negative pressure, Class 100,000 clean hot air supplied by the hot air unit passes through the tablet bed, exits via the bottom screen perforations, and is discharged through the exhaust damper. This process rapidly dries the coating medium on the tablet surfaces, forming a solid, dense, and
Advanced PLC and HMI systems enable automatic parameter setting, recipe management and real-time data recording. Operators can reproduce proven coating machine processes at the touch of a button, reducing human error, saving materials and improving overall equipment effectiveness (OEE).
From pre-sale process consulting and workshop layout design to installation, commissioning, operator training and spare parts supply, Grand Machinery provides end-to-end support. Our international service network ensures fast response, minimal downtime and maximum return on your coating machine investment.
Every coating machine is manufactured to strict quality standards using premium stainless steel, precision-welded drums and calibrated spray systems. The result: uniform coating thickness, smooth surfaces and batch-to-batch consistency that meet the most demanding pharmaceutical and food quality requirements.
Grand Machinery coating machines follow a precise, automated workflow designed for consistency, repeatability and efficiency.
Have A Business Idea In Your Mind?
Share your production requirements with our specialists. We’ll provide a free feasibility study and a tailored equipment configuration plan to help you scale.
Soft capsules have a wide range of applications in many high-value-added fields due to their excellent bioavailability and appearance.Regardless of your formulation, Grand Equip provides tailored encapsulation solutions for every industry.
Film coating, sugar coating and enteric coating for tablets, capsules and pellets, with strict GMP and clean-room compatibility.
Sugar coating, chocolate panning, and coating for candy, soft gels and gummies — delivering smooth, glossy, evenly colored finishes consumers love.

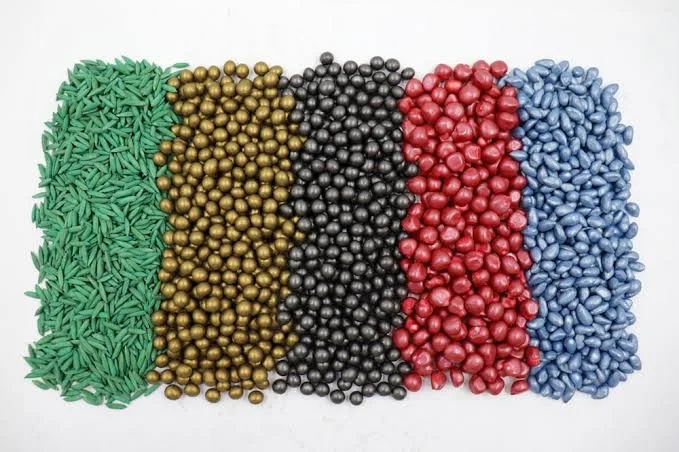

Fertilizer coating, slow-release granule coating, and seed dressing for improved handling, protection and controlled release.
Coating Machine FAQ: Sizing, Process Control & Troubleshooting
Load the pan to 30–60% of volume; gives the example that a 150 L pan suits ~60–80 kg of tablet load, balancing spray coverage and drying airflow.
Perforated pans suit aqueous film coating (fast drying); poreless pans retain solution inside the drum, ideal for sugar coating, chocolate panning, and moisture/solvent-sensitive products. Some models accept interchangeable drums.
Yes, by configuring spray guns, air handling and pan-speed range, with a validated changeover between the fast-drying perforated process and the slow, gentle poreless process.
Independent control of atomizing pressure, gun-to-bed distance, pan speed, inlet/outlet temperature and exhaust balance, with proven parameters stored in the PLC recipe library for batch-to-batch repeatability.
Solvent-based uses an ATEX/explosion-proof version with flameproof motors, static grounding and solvent-recovery exhaust; aqueous uses a standard clean-air unit.
Multi-gun spray + calibrated peristaltic dosing + balanced exhaust typically achieves 85–95% utilization, cutting material cost and waste.
CIP-friendly poreless/ribbed pans with spray balls, smooth welds and drain ports; rinse- and swab-sampling points support GMP validation; changeovers are documented and reproducible via PLC recipe management.
