Pectin Gummy Depositing Machine

Pectin sets fast, reacts to pH and punishes imprecise temperature control. Grand Machinery pectin gummy depositing machines are engineered around those realities — accurate dosing, tight temperature control and rapid, clean depositing for vegan-friendly gummies from 360 to 720 kg/h.

GM300 Pectin Gummy Depositing Line 1 Pectin Gummy Depositing Machine

Pectin Gummy Depositing Machine Models

Two configurations cover every stage of growth — the modular machine series for precision candy production, and the turnkey GM300 depositing line for full-scale pectin gummy manufacturing.

Pectin Gummy Depositing Machine Series 3

Pectin Gummy Depositing Machine Series

Grand Machinery’s Pectin Gummy Depositing Machine Series (GM-360, GM-500, GM-720), engineered for precision candy production with capacities ranging from 360kg/h to 720kg/h. Upgrade your confectionery manufacturing line with reliable cooker-depositor integration, stable compressed air control, and robust heavy-duty performance.

GM300 Pectin Gummy Depositing Line 1 Pectin Gummy Depositing Machine

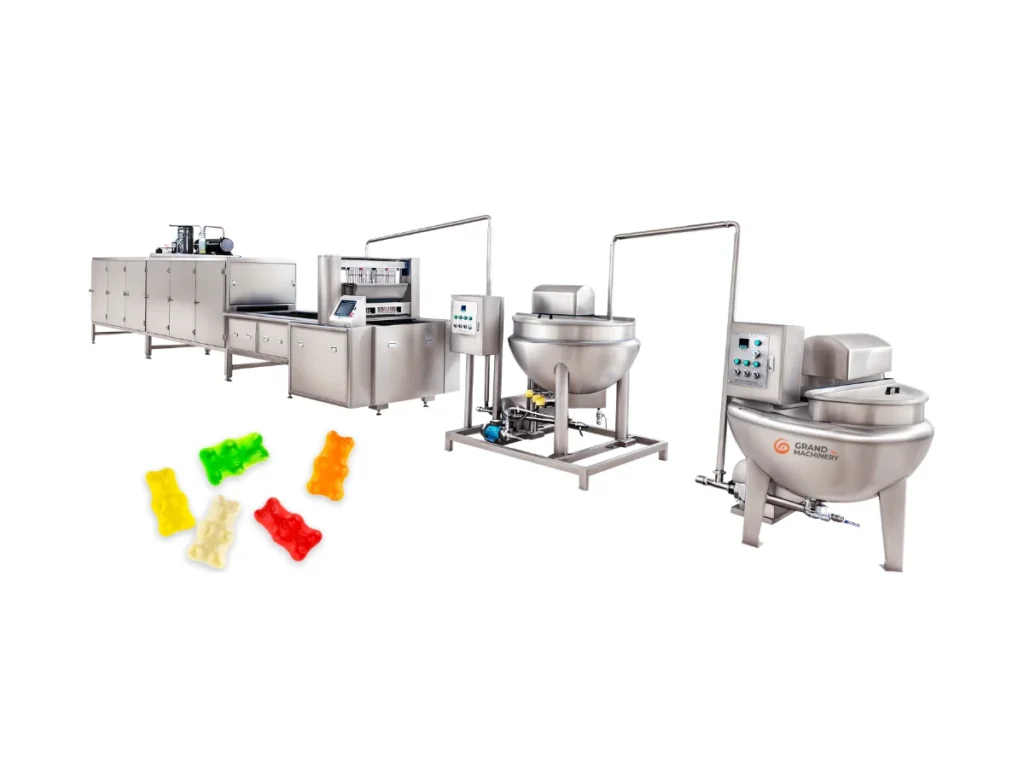

GM300 Pectin Gummy Depositing Line

The GM300 Pectin Gummy Depositing Line is a complete turnkey solution for pectin gummy manufacturing — from cooking and dosing to depositing, cooling and demolding — delivered as an integrated line and pre-matched in capacity at every stage. Contact Grand Machinery to get a free quote today.

Why Choose a Grand Machinery Pectin Gummy Depositing Machine

Pectin behaves nothing like gelatin: it sets quickly, is sensitive to pH, sugar solids and shear, and leaves little room for process error. Every Grand Machinery pectin gummy depositing machine is designed to make that behavior repeatable, batch after batch.

Precision Dosing

Servo-driven depositing pumps deliver accurate, repeatable deposit weights across all molds, minimizing giveaway and rejects.

Temperature Control

Cooking, holding and depositing temperatures are independently controlled and monitored, protecting pectin texture from heat damage and premature setting.

Vegan & Clean-Label

Purpose-built for pectin formulations: plant-based, gelatin-free gummies for vegan, vegetarian, halal and "clean label" market positioning.

How a Pectin Gummy Depositing Machine Works

Pectin gummies are made in a narrow process window: dissolve, cook, dose acid, deposit, cool — with temperature and pH deciding the final texture. Here is what happens inside a pectin gummy depositing line, stage by stage.

  1. Pectin Pre-Mixing — Pectin powder is dry-blended with part of the sugar to prevent clumping, then dissolved in water to form a smooth pectin solution.
  2. Cooking to Solids Target — The slurry is cooked to the target soluble solids (°Brix), evaporating water under controlled temperature to protect the pectin.
  3. Holding & Buffering — The cooked base is held hot in jacketed hoppers with buffering salts, keeping the pectin fully fluid and above setting temperature.
  4. Acid & Color Dosing — Acid solution (and color/flavor) is dosed precisely — this pH drop triggers setting, so timing and mixing accuracy are critical.
  5. Depositing into Molds — The servo depositing pump fills starch-free silicone or metal molds quickly and consistently, before the set begins.
  6. Cooling, Demolding & Curing — Molds pass through a cooling tunnel to lock the gel structure; gummies are demolded, then cured to final texture and moisture.

Pectin vs Gelatin Gummy Depositing Machine — Which Do You Need?

Pectin and gelatin gummies share the same depositing concept but demand different process control. Use this comparison to decide which machine — or dual-configured line — fits your product strategy.

Comparison DimensionPectin Gummy Depositing MachineGelatin Gummy Depositing Machine
Gelling MechanismpH triggered rapid gelling, narrow process windowThermal melting and cooling, wide window, high fault tolerance
Temperature ControlIndependent temperature control + insulated short circuit, prevents premature gellingStandard insulation and cooling control
Market PositioningVegan / Vegetarian / Clean Label / Functional GummiesTraditional Gummy Bears / Mass Market Candy
Formula FlexibilityMust adjust based on pectin type (HM/LM) and sugar solidsLarge room for formula adjustment
Capacity Range (This Proposal)360–720 kg/h (expandable to GM300 complete line)Covers a wider range depending on the machine model
Cleaning & ChangeoverFrequent formula changeover (multi-SKU OEM), relies more on CIP designRoutine changeover

Selection Recommendation: Focus on vegan/functional gummies → Choose a pectin depositor or the GM300 complete production line; to produce both types → Use a single platform with a dual-configuration setup, fine-tuning pectin and gelatin formulations separately while sharing cooling and downstream equipment.

Pectin Gummy Depositing Machine — Frequently Asked Questions

The questions buyers ask most before investing in a pectin gummy depositing machine. Anything more specific? Our engineers reply within 24 hours.

Q1: What production capacity do your pectin gummy depositing machines offer?

The machine series covers 360–720 kg/h depending on configuration and mold size. For larger projects, the GM300 Pectin Gummy Depositing Line is engineered as a complete integrated line — tell us your target daily output and we will size the line accordingly.

Yes, with configuration. The depositing platform supports both, but pectin requires tighter temperature control, different pump settings and an acid-dosing sequence, because pectin sets faster and is pH-sensitive. We pre-configure the recipe parameters and provide formula commissioning for your specific pectin products.

Pectin gels rapidly once pH drops, is sensitive to heat, sugar concentration and shear, and has a narrow working window. Our machines manage this with jacketed heated hoppers, short heated flow paths and optional downstream acid dosing — so setting happens in the mold, not in the pipe.

Yes. The line is built specifically for pectin — a plant-based gelling agent — making it ideal for vegan, vegetarian and halal-certified gummy production. All contact parts are food-grade stainless steel, and documentation packs are available for certification audits.

The Pectin Gummy Depositing Machine Series consists of individual depositing machines designed for integration into confectionery production systems. The GM300 Pectin Gummy Depositing Line is a complete production solution that integrates cooking, depositing, cooling, and demolding equipment. The right option depends on your existing production setup, required capacity, and level of automation.

Our pectin gummy depositing machines can be configured to produce a variety of confectionery products, including fruit-flavored pectin gummies, vegan gummy candies, vitamin gummies, and selected layered or center-filled gummy products.

Available product formats depend on the formulation, machine configuration, and mold design. Contact us to confirm your production requirements.

Sanitary stainless steel piping, CIP-friendly design and tool-free disassembly of key contact parts allow fast cleaning between recipes and colors — important for contract manufacturers running many SKUs on one line.

We provide on-site installation and commissioning, formula trial support with your actual recipes, operator training, and a 12-month warranty with lifetime remote technical support. Spare parts are stocked for worldwide shipping.
