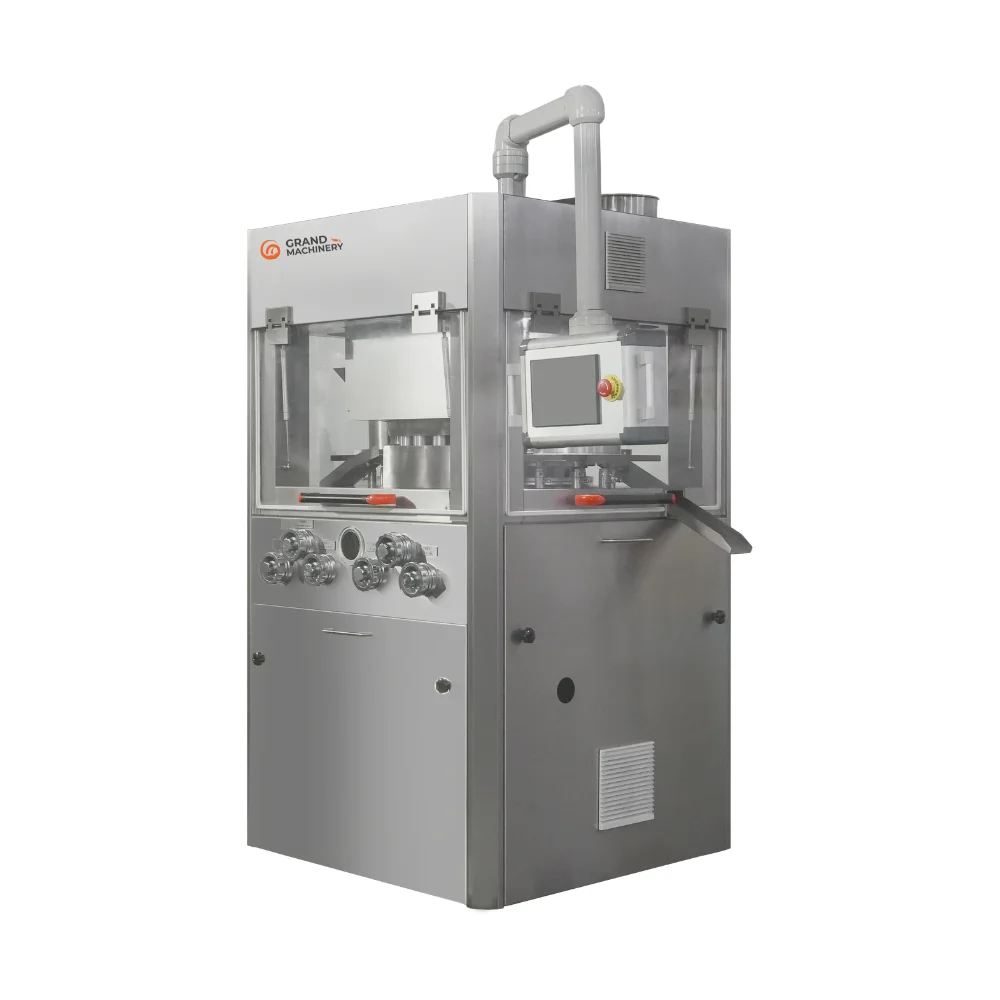

The GZP500 High Speed Tablet Press is a high-performance, double-press rotary machine engineered for large-batch production in the pharmaceutical, food, chemical, and electronic industries. Featuring a fully enclosed stainless steel body, advanced PLC human-machine interface control, and robust pressure protection, it efficiently compresses granular raw materials—including difficult-to-form items—into reliable round or irregular tablets while ensuring high safety, precision, and compliance with GMP standards.
GZP500 High Speed Tablet Press is a double-press high-speed rotary tablet press, which compresses granular raw materials into tablets. It is mainly used in the pharmaceutical, food, chemical, and electronic industries for pressing difficult-to-form materials.
| Model | GZP-35 | GZP-43 | GZP-51 | GZP-55 |
|---|---|---|---|---|
| Number of Stations | 35 | 43 | 51 | 55 |
| Tooling Standard | D | B | ZP | BB |
| Max Main Pressure (KN) | 100 | |||
| Max Pre-pressure (KN) | 20 | |||
| Max Tablet Diameter (mm) | Round tablet: 25 | Round tablet: 18 | Round tablet: 13 | Round tablet: 13 |
| Max Tablet Diameter (mm) | Irregular tablet: 25 | Irregular tablet: 19 | Irregular tablet: 16 | Irregular tablet: 16 |
| Max Filling Depth (mm) | 20 | 18 | 15 | 15 |
| Max Tablet Thickness (mm) | 8 | 7 | 6 | 6 |
| Max Turret Speed (r/min) | 30 | |||
| Max Production Capacity (pcs/h) | 126000 | 154800 | 183600 | 198000 |
| Motor Power (kw) | 11 | 7.5 | ||
| Overall Size (mm) | 1370 × 1170 × 1800 | |||
| Machine Weight (kg) | 3200 | |||
